| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female /Male | Cable color: | Aqua / Wathet Blue |
| Fiber qty: | 8 /12 /24 core | Cable Material: | LSZH / OFNP / PVC |
| Cable shape: | Round / Ribbon | Fiber type: | OM3 OM4 |
| เน้น: | LSZH MPO MTP,850nm OM3 MPO MTP,Mutilmode OM3 MPO MTP |
||

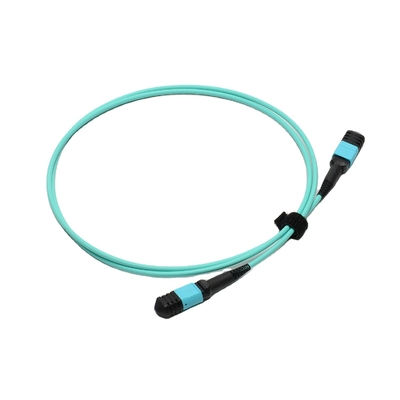

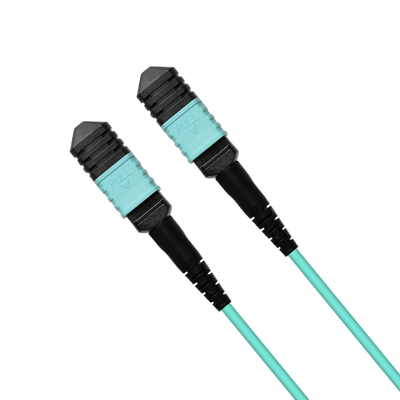

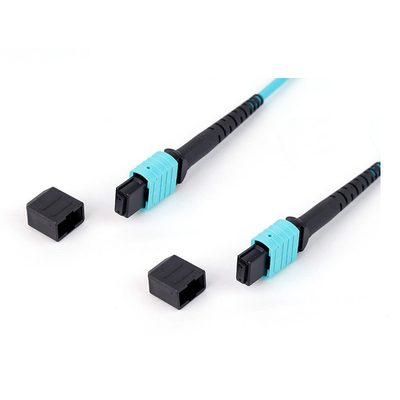

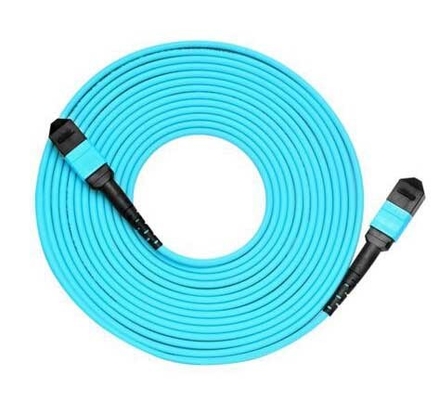

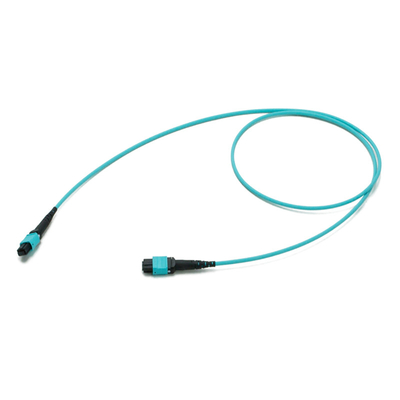

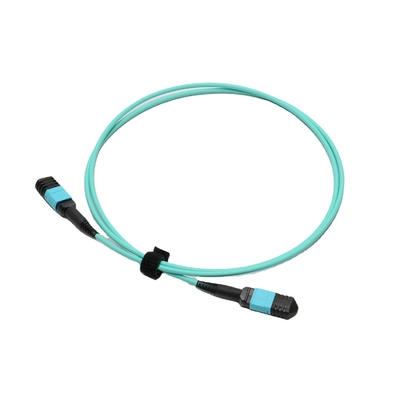

850nm Mutilmode OM3 Elite Loss LSZH MPO MTP
12core MPO to MPO Truck Cable Mutilmode OM3 MTP Patch Cord Aqua cable
We supply MTP and MPO fiber optic cables. These are available in Female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.
Features:
MTP/MPO standard compliant multifibre connector
LC (SFF data center standard), SC discrete interface
OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C
Factory terminated and tested
High performance zirconia sleeve adaptors
Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.
MTP/MPO interface MTP/MPO components feature superior optical and mechanical properties.
Optimized performance Low loss MTP/MPO Elite, discrete Premium connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget, high-speed network environments.
Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.
Performance of Assemblies MTP / MPO Termination:
| Type/Performance | Singlemode(APC polish) | Multimode(PC / Flat Polish) | ||
| Standard | Elite Low Loss | Standard | Elite Low Loss | |
| Maximum Insertion Loss | ≤ 0.75dB | ≤ 0.35dB | ≤ 0.60dB | ≤ 0.35dB |
| Return Loss | ≥ 50dB | N/A | ||
| Operating Temperature | -20°C to +70°C | |||
| Test Wavelength | 1310nm | 850nm | ||
Applications:
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
Production Equipment :
