| Length: | 1m or customized | ได้รับการรับรอง: | RoHS,ISO9001 |
|---|---|---|---|
| Cable color: | white,yellow,blue or customer request | Fiber type: | G652D/G657A1/G657A2 etc. |
| Connector: | SC | Ferrule End-face: | APC |
| Cable diameter: | 0.9mm/2.0mm/3.0mm | Return loss: | >60dB |

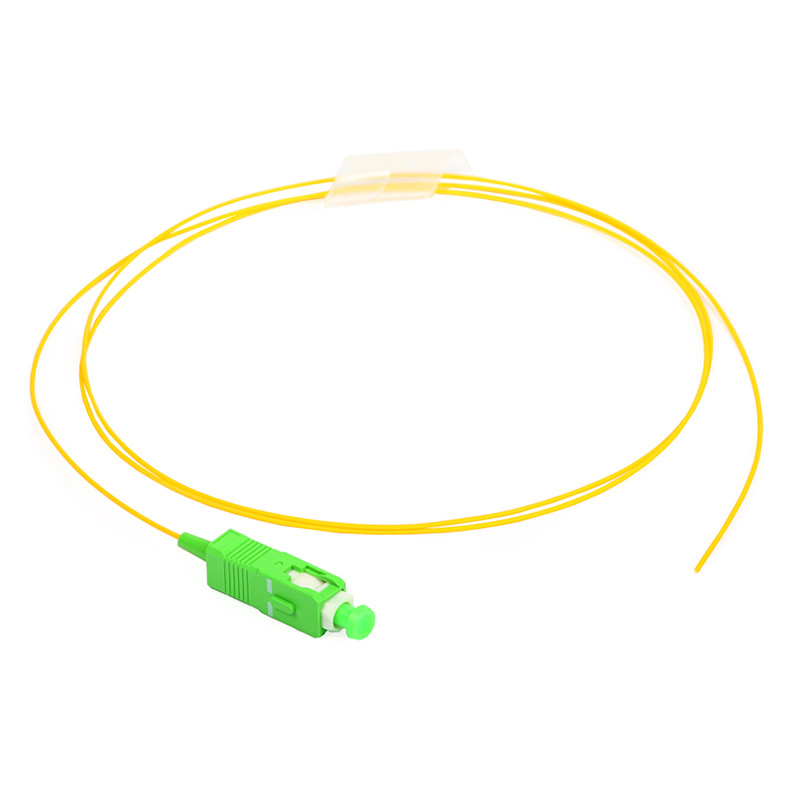

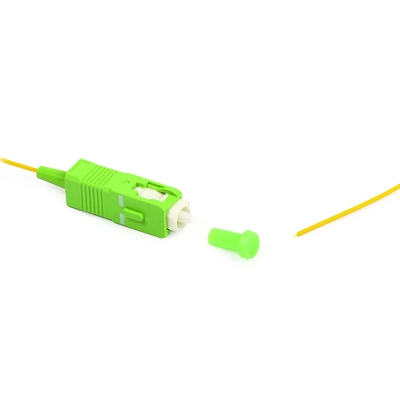

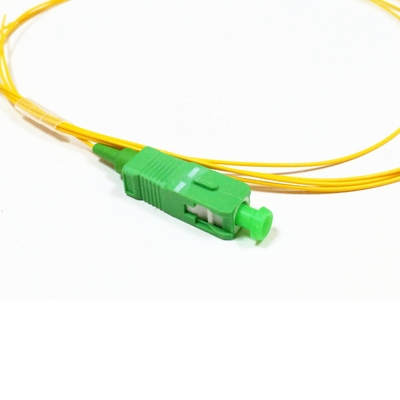

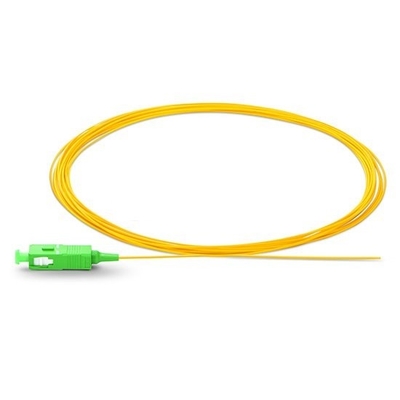

| เน้น: | 0.9mm Optical Fiber Pigtail,Simplex Optical Fiber Pigtail,SC APC Connector Fiber Pigtail |
||
| Parameter | Insertion loss(typical) | Return loss | Operating wavelength | Exchangeability | Vibration | Operating temperature | Storage temperature | |
| unit | dB | dB | nm | dB | dB | ℃ | ℃ | |
| SC | UPC | ≤0.3 | ≥50 | 1310, 1490,1550 | ≤0.2 | ≤0.2 | -40~75 | -45~85 |
| APC | ≤0.3 | ≥60 | ||||||
Order Information:
1. Connector type: SC, LC, ST, FC, E2000, MTRJ, MU, DIN, D4
2. Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3(50/125um), OM4(50/125um)
3. Cable count: Simplex or Duplex, bundle pigtail, ribbon pigtail
4. Diameter of cable: 3.0mm(2.8mm), 2.0mm(1.8mm), 0.9mm
5.Cable length: 2Meter, 5Meter, 10Meter, customized length
6. Cable color: Yellow for SM, Orange for OM1 & OM2, Aqua for OM3, Violet for OM4, customized color
7.Outer jacket:PVC Riser cable, PVC Plenum cable, LSZH cable
