| Model Number:: | SFP-10G-AOC3M Compatible SFP+ to SFP+ AOC 3Meter | Data transfer rate:: | 10Gbps |
|---|---|---|---|
| Function:: | FTTX | Wavelength:: | 850nm |
| Length:: | 3meter | Fibre Channel:: | 4x and 8x |
| เน้น: | SFP-10G-AOC3M,3 Meter SFP+ To SFP+ AOC,Compatible SFP+ AOC |
||

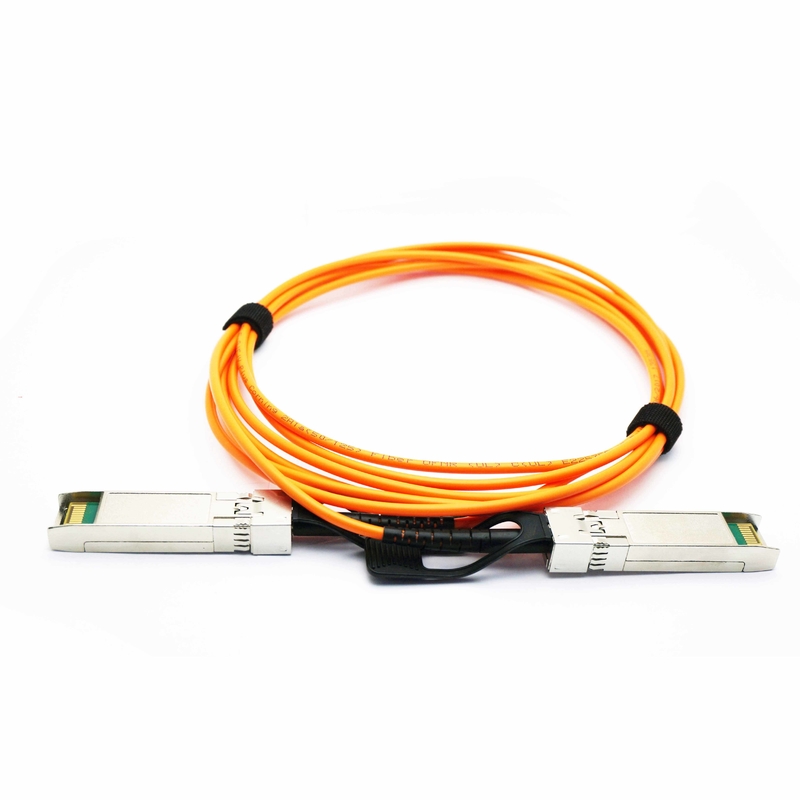

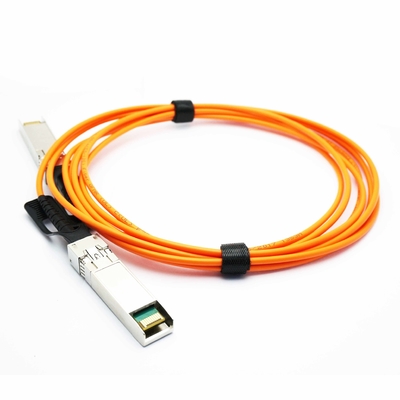

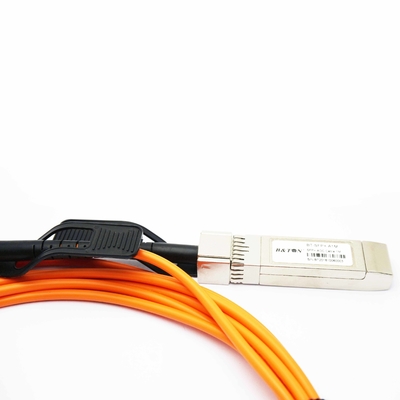

3 Meter SFP-10G-AOC3M Compatible SFP+ To SFP+ AOC

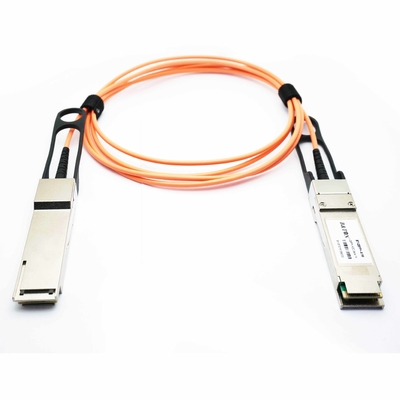

40Gbps QSFP+ to 4*SFP+ Active Optical Cable 10M QSFP 4SFP AOC
SFP+ DAC Cable
SFP+ Active Optical Cable (AOC) Assembly is designed for short distance links in high-speed interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets. It provides full duplex operation and supports distance up to 300 meters on OM3 fiber. The 10G SFP+ AOC can be used as a reliable alternative to SFP+ direct attach copper cables (DAC) while providing improved signal integrity, lightweight, exceptional cost, and performance value. It’s designed expressed for high speed, high density and low power consumption for data center networking applications.
The SFP+ AOC cable is programmed to be compatible with a wide range of Cisco network equipment for in-rack connections such as 10 Gigabit Ethernet (10GbE) Switches, Routers, Network Interface Cards (NICs) and Network Storage Systems.
Features
• Support for multi-gigabit data rates up to 10.5Gbps
• Support 4x and 8x Fibre Channel data rates
• Hot-pluggable SFP 20PIN footprint
• Hot Pluggable, lightweight cable, the small bending radius
• 850nm high-speed VCSEL and PIN receiver
• Single 3.3V power supply
• Compatible to SFP+ MSA
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
|
Part Number
|
Description
|
|
CY-SFP+-AOC1M
|
10G SFP+ to SFP+ Active Opitc Cable AOC 1Meter
|
|
CY-SFP+-AOC2M
|
10G SFP+ to SFP+ Active Opitc Cable AOC 2Meter
|
|
CY-SFP+-AOC3M
|
10G SFP+ to SFP+ Active Opitc Cable AOC 3Meter
|
