| Item: | ST-FC hybrid adapter | FC Side: | Female |
|---|---|---|---|
| SC Side: | Female | Shape: | Rectangle |
| FC Material: | Zinc or Copper alloy | SC Material: | Zinc or Copper alloy |
| Fiber type: | Singlemode / Mutilmode | Type: | Simplex |
| เน้น: | Zirconia sleeves SC To FC Fiber Adapter,Female Zirconia Sleeves Adapter,Zirconia Sleeves Hybrid Fiber Adapter |
||

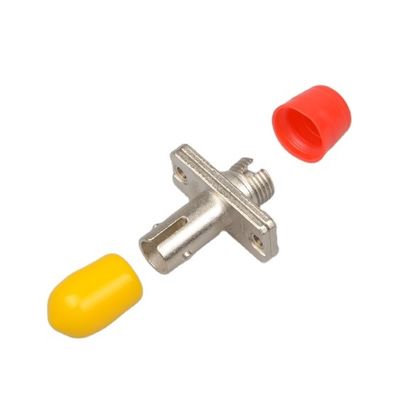

Hybrid Simplex Female Zirconia Sleeves SC To FC Fiber Adapter
ST Female to FC Female Hybrid ST-FC Simplex Fiber optic Adapter , Zinc or Copper alloy Metal material Coupler
Description:
Hybrid fiber optic adaptors allow users to convert from one connector type to another.
This ST(Female) to FC(FeMale) type fiber optic hybrid adapter is a regulated type fiber-embedded adapter connector which subjected to the operation of splicing and coupling between fiber optics.
We provide Products, AS LC-SC/APC,LC-SC/PC,ST-LC,FC-LC,ST-SC,FC-SC,ST-FC ,etc.
Features:
Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatible
Available without flanges or with flange for duplex, saving panel space
Meet JIS5974 and bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts compliant with ROHS
Application:
Fiber optic transmission system
Fiber optic sensing
Fiber optic distribution frame
Testing/Measurement Instruments
LAN
CATV
Telecommunication networks
Specification:
1. Hybrid adapter type: ST(Female) to FC(Female)
2. Fiber tyle: SM 9/125 Fiber.
3. Insertion Loss(db): Less than 0.50
4. Repeatability(db): Greater than 0.38
5. Interchangeability(db): Less than 0.20
6. Sleeve Socket Material: Zirconium dioxide ceramic
7. Working temperature: -25C to +75C.
8. Storage temperature: 25C to +75C.
| Parameter | Unit | ST female to FC male |
| SM | ||
| PC/UPC/APC | ||
| Insertion Loss (Typical) | dB | ≤0.2 |
| Return Loss | dB | ≥60 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Time | >1000 |
| Operating Temperature | °C | -40~75 |
| Storage Temperature | °C | -45~85 |

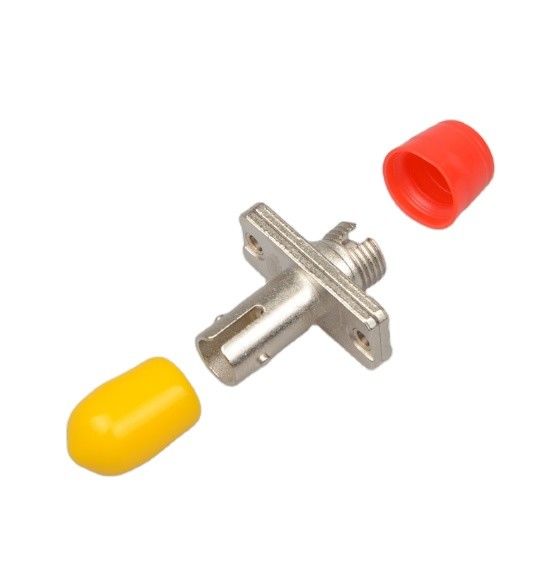

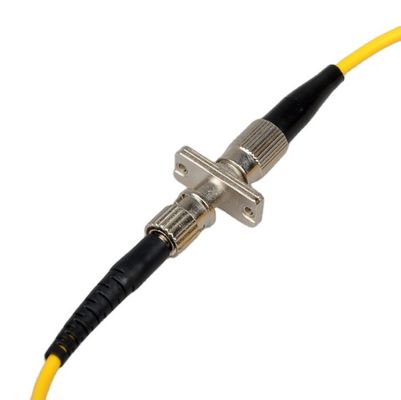

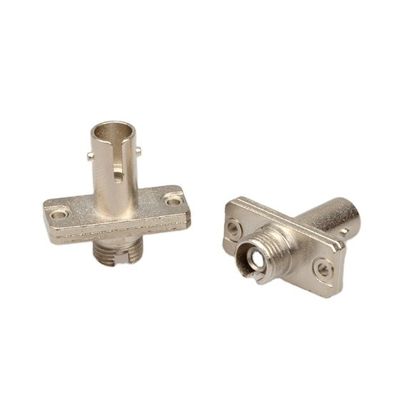

Drawing and Pictures:
