รายละเอียดสินค้า:
การชำระเงิน:
|
| Item: | Auto shutter adapter | Color: | Blue / Green / Customized |
|---|---|---|---|
| Structure: | Flange or Flangeless | Materials: | PEI+ABS |
| Ferrule material: | Ceramic | Cap color: | Black / Blue / Green / Customiaed |
| Type: | UPC / APC | Operating temperature: | -40℃~85℃ |
| เน้น: | SC Fiber Optic Coupler,Simplex auto shutter Optic Coupler,Ceramic Simplex SC Optic Coupler |
||

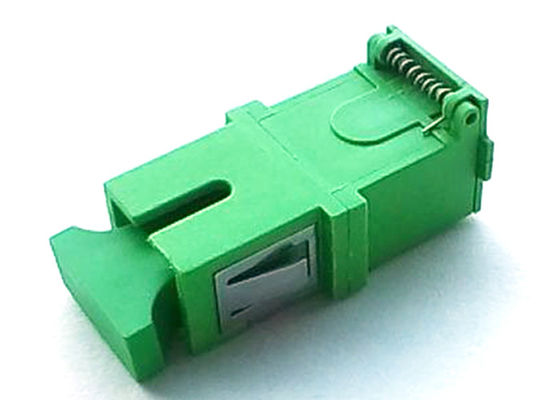

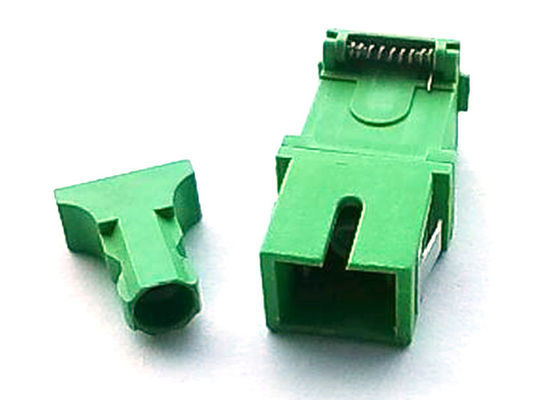

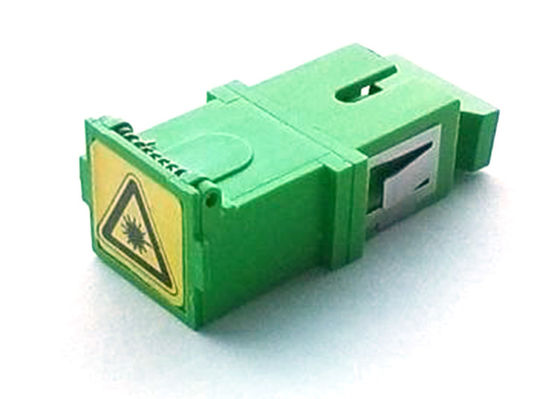

Blue Dust Cap Simplex Auto Shutter SC Fiber Optic Coupler
Simplex auto shutter SC optical adapter,Optical cable coupler Green / Blue dust cap
Description:
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.Fiber optic adapter is used for the connection and coupling between fiber active connectors.Choose proper type according to the splice of optical fiber active connector. Good agglomerati‐on technic to ensure the best quality, high intensity and stability.
Features:
SC apc/upc fiber optic adaptor
Low insertion loss, high return loss
Good compatibility High precision of mechanical dimensions
High reliability & stability Ceramic or Bronze Sleeve
PC, APC, UPC optional Simplex / Duplex
Application:
Telecommunication
Test equipment
LAN and WAN
Broadband
Network
FTTH
CATV
Specification:
Insertion loss: no more than 0.2dB (PC, UPC and APC), no more than 0.3dB (mm)
Durability: no more than 0.2dB
Withdraw force: 100 to 300g/f
Operating temperature: -40 to +85°C
Storage temperature: -40 to +85°C
Meets IS C5974 and Bellcore GR-326 standards
RoHS Directive-compliant
