รายละเอียดสินค้า:
|
| Product name: | Attenuator | Fiber Mode: | Single mode, Multimode |
|---|---|---|---|
| Attenuation Accurancy: | 1-9dB ±0.5dB, 10-30dB ±10% | Attenuation range: | 0-30dB |
| Return loss: | PC≥45 dB; UPC≥50 dB ;APC ≥60 dB | Repeatability: | 1000 times |
| Operating Wavelength (nm): | 1260~1620(SM) | Operating temperature: | -40-80°C |
| Color: | Yellow | Connector: | ST |
| เน้น: | singlemode fiber optical attenuator,30dB ST optical attenuator,Yellow Hat Fiber attenuator |
||
Optical attenuator is a passive device used to reduce the power level of an optical signal. It could be applied to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Finetelecom offers LC,FC,SC,ST and MU fixed attenuator with different attenuation level, from 1dB to 30dB.
Features:
1). Low back reflection and Low PDL
2). High precision attenuation value
3). Precision control of attenuation range
4). Wide attenuation range
5). Precision ceramic ferrule
6). FC, SC, ST, LC … optional
7). Plastic or metal housing material
Application:
1). Fiber optical telecommunication system
2). Fiber optical CATV
3). Fiber optical sensor
Parameters:
| Product type | Coupler Attenuator Male to Female |
| Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | ≥ 50 db (PC) |
| ≥ 55 db (UPC) | |
| ≥ 65 db (APC) | |
| Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
| +/-10% for 6 to 30db attenuation | |
| Polarization Dependent loss | ≤ 0.2db |
| Mechanical endurance | >1000 |
| Maximum optical Input power | 200MW |
| Operating Temp Range | -40 to + 80degree |
| Standard | YD/T 1272.4-2007 |
Ordering Information:
Step 1: Connector type: FC, SC, LC, ST
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nmc

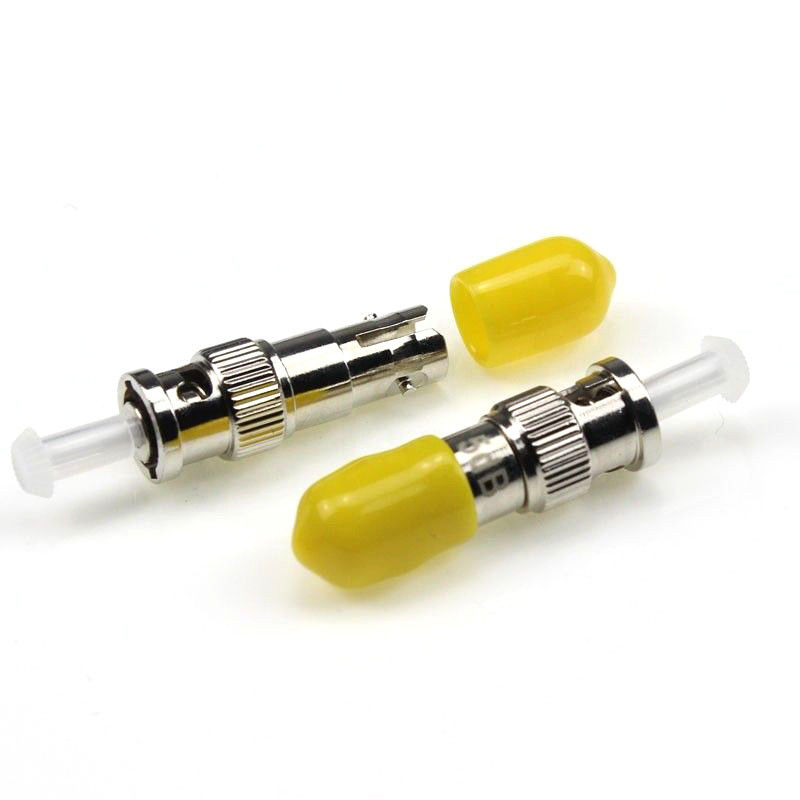

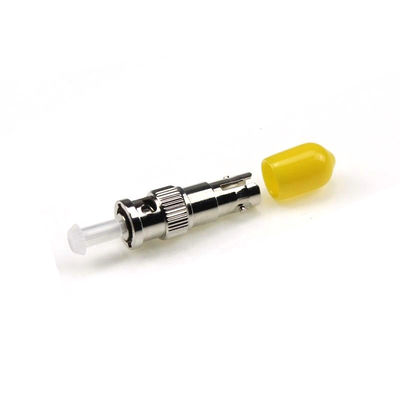

Product picture
Factory picture
