| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Outer jacket: | PVC/LSZH/OFNP |
|---|---|---|---|
| Fiber quality: | 2 / 4 / 6 / 8 / 12 | Color: | Yelllow/Orange/Aqua/Customized |
| Cable diameter: | 4.8x2.2mm | Package: | Carton, Wooden reel ,1km/roll |
| Application: | FTTH / Indoor / Fan out patch cord | ได้รับการรับรอง: | ISO9001/CE/ROHS |
| เน้น: | LSZH Jacket Optical Fiber Cables,Singlemode Ribbon Fiber Cable,Singlemode LSZH Cable |
||

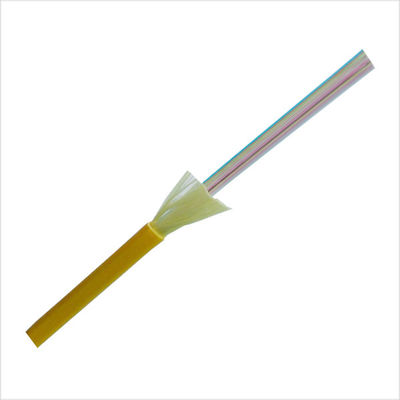

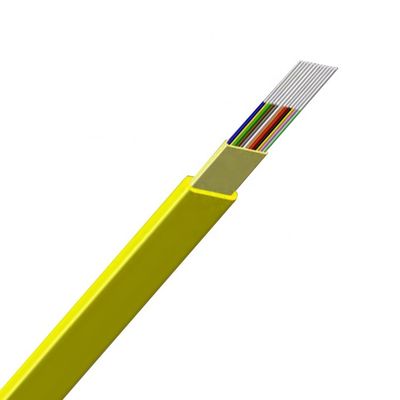

Singlemode 12 Core Ribbon LSZH Jacket Optical Fiber Cables
GJFDKBV Singlemode Multimode 12core Ribbon Indoor Optical Fiber Cable LSZH Jacket
Discription:

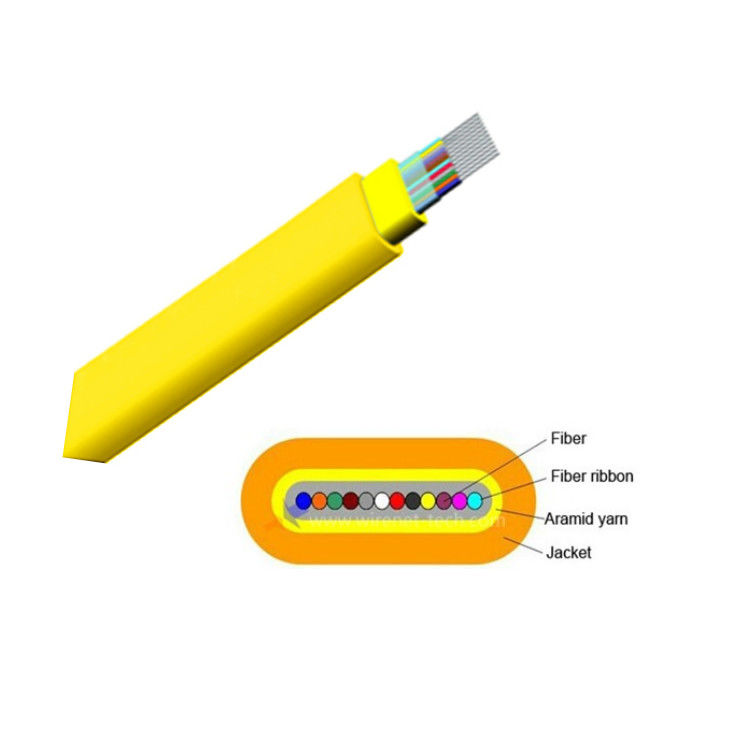

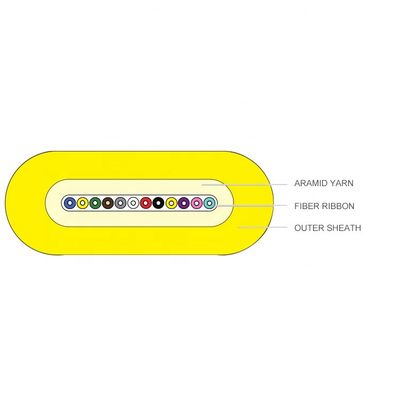

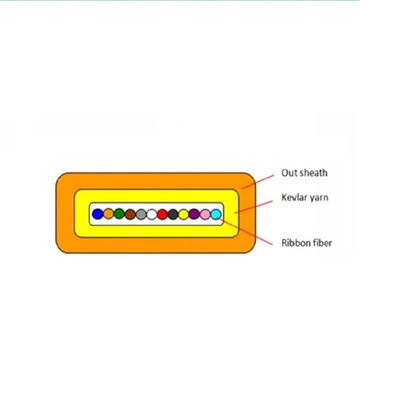

The fiber ribbon is evenly bound with high modulus soft aramid yarn as strength member
Its rectangular outer sheath is shaped by a special material extrusion technique.
Flame-retardant jacket, easy to strip, small bending radius, good performance under stress.
Features:
Tight buffer fiber ease of stripping;
Tight buffer fiber have excellent flame-retardant performance;
Aramid yarn as strength member make cable have excellent tensile strengh;
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Application:
Ribbon fiber flexible connection jumper
Various indoor cabling solutions. Especially used in good laying conditions.
Interconnection between apparatuses
Connection for Passive and Active Optical Component
Fiber Optical Patch cord and connectors
Transmission equipment,Voice data
Flat Ribbon Fiber Optical Patch Cord
Temperature Range:
Operating : -20℃ to +60℃
Storage: -20℃ to +60℃
Installation: -5℃ to +50℃
Characteristic:
1. Excellent strippability with tight buffered fiber
2. High tensile strength due to aramid strength member
3. Excellent corrosion resistant, waterproof, flame retardant and environmental- friendly properties of the outer sheath
Standards:
Comply with standard YD/T1258.4-2005 and IEC 60794-2-20/21
Technical Parameter:
| Fiber Counts | Cable Diamter(mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Static | Dynamic | |||
| 2 | 2.5*3.5 | 7.3 | 200 | 80 | 500 | 200 | 30 | 50 |
| 4 | 2.5*3.5 | 7.4 | 200 | 80 | 500 | 200 | 30 | 50 |
| 6 | 2.5*4.0 | 8.2 | 200 | 80 | 500 | 200 | 30 | 50 |
| 8 | 2.2*4.5 | 9.3 | 200 | 80 | 500 | 200 | 30 | 50 |
| 12 | 2.2*4.8 | 10 | 200 | 80 | 500 | 200 | 30 | 50 |
Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.
Order Information:
Ⅰ Cable type:SM or MM( Sinlge-mode:yellow; Multi-mode:orange;options available for other colours
Ⅱ Fiber Type:SM(G652D,G655C,G657A1,G657A2,G657B3....) MM(OM1,OM2,OM3,OM4)
Ⅲ Fiber qty: 2 / 4 / 6 / 8 /12
Ⅳ Cable length: 2000M/Drum( customized, MOQ=2000M)
Ⅴ Cable Jacket: PVC,LSZH,OFNR,OFNP
Detail:
