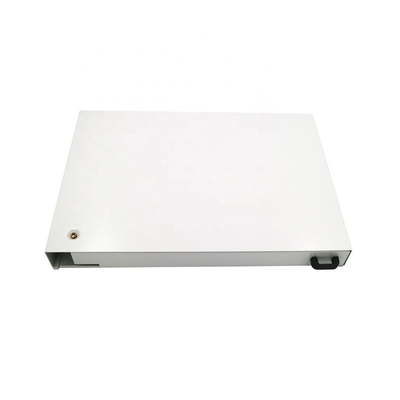

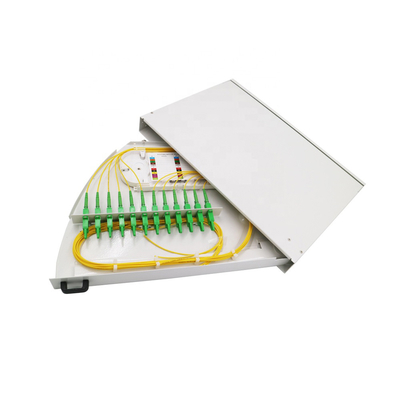

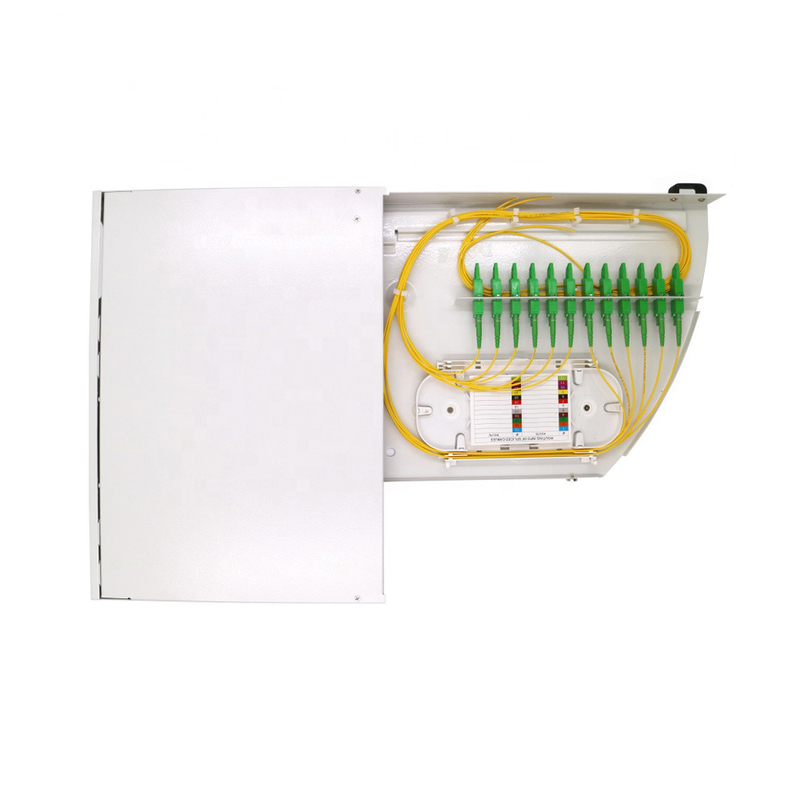

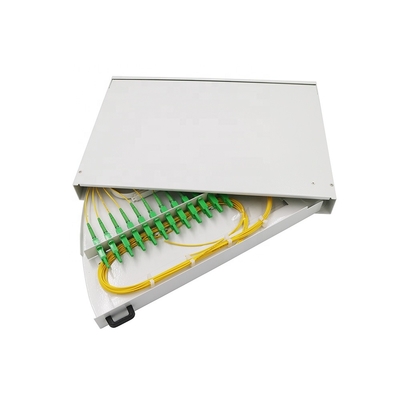

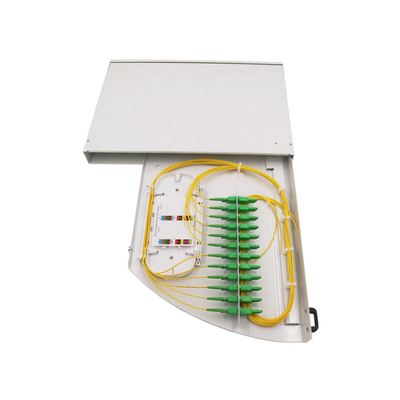

Rotary Fiber Optic 24 Port SC APC Rack Mount Patch Panels

Rotary Fiber Optic 24 Port SC APC Rack Mount Patch Panels

19'' Rotary Fiber optic distribution frame Rack mount 24 port patch panel with SC/APC adapter and pigtal

Brief Introduction:

Our Company Fiber Distribution Frame can do 1U patch panels, Applicable to FTTH project, fixed and welding with pigtails of drop cable of residential building and villas, etc. Design of hinge and convenient press-pull button lock. Small size, light weight, pleasing in appearance. With max fiber capacity 2 adapter output, available for the installation of FC,SC,ST,LC adapters.

Specification:

• SIZE:430*300*1U
• MATERIAL:COLD ROLLED STEEL SHEET
• CAPACITY:1U 24CORES
• WEIGHT:4.7KG

Features & Benefits

• Low excess loss & high performance
• Retractable splicing tray
• Convenience and ease of handling
• Indoor use, outdoor use customized
• Dustproof design,suitable for rack dustproof installaltion
• Compatible for most adaptors
• Easy to operate for revolving structure,rack mount
• cold rolled steel sheet
• It can be widely applied for distribution and end connection of indoor cables

Applications

· Telecommunication networks

· Local Area Networks

· FTTH

· CATV networks

· Active device termination

Packing
