| Languages: | English, Chinese | Splicing programs: | SM, MM, DS, NZ-DS, EDF |
|---|---|---|---|

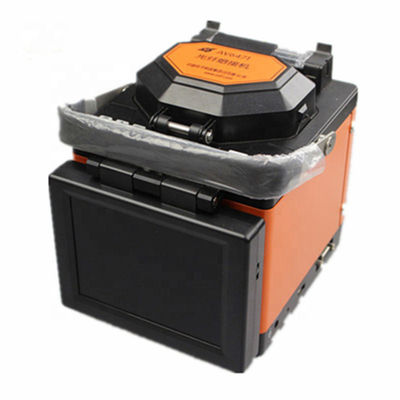

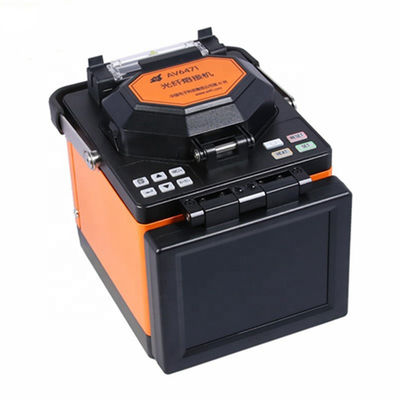

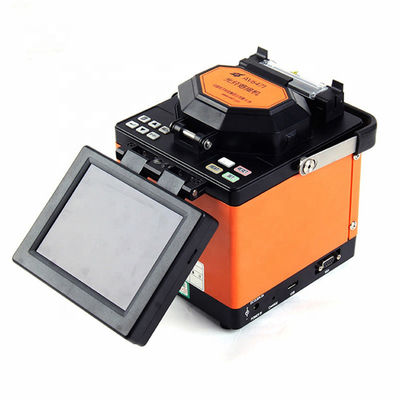

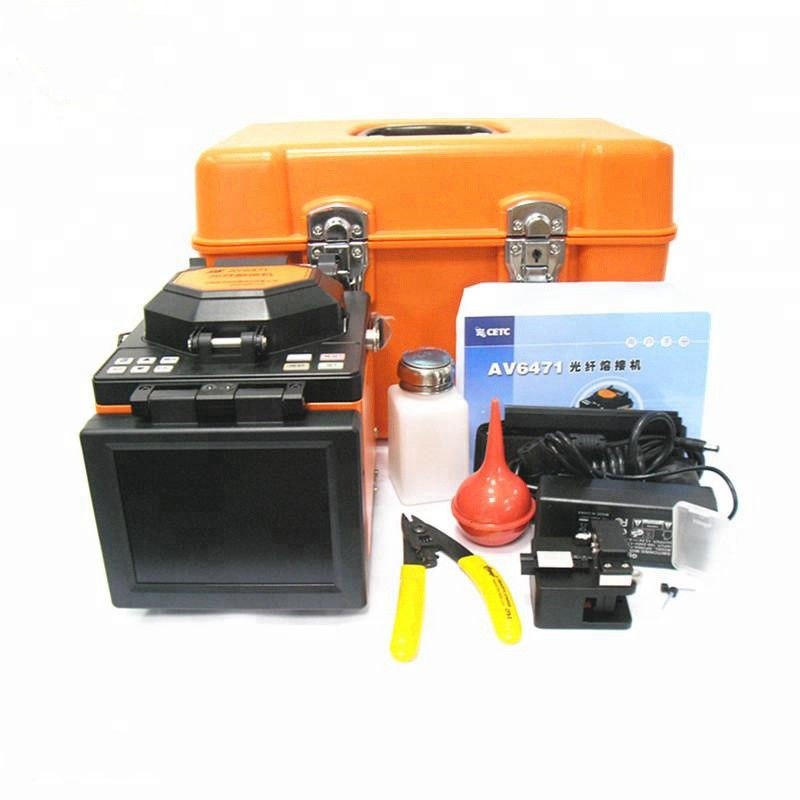

| Model: | AV6471 | Product Name: | China Make AV6471 Single Fiber Fusion Splicer |
| Types of splicing mode: | Auto & Manual | Dimension: | 160(L)*150(W)*140(mm) |
| เน้น: | EDF Single Fiber Fusion Splicer,EDF SM Fusion Splicer,EDF MM Fusion Splicer |
||
Best Quality China Make AV6471 Single Fiber Fusion Splicer Affordable Price
Language Interface: English
AV6471 is an optical fiber splicing device with a brand new design. With powerful functions and super low splicing loss, it is highly competent for construction of trunk lines and FTTx. Lightweight and compact, it is easy to use even in confined space. The novel fiber imaging system makes the image clearer. The real-time embeded Operating System provides a friendly man-machine interface and abundant functions. The built-in large capacity Li-Ion battery can support long-time field work. The real-time compensation system for temperature, humidity and air pressure has greatly enhanced the device against unfavorable environment changes and thus guarantees its consistency of low loss splicing in various environments.
Main Features:
ο New fully-digitalized design;
ο Small in size, lightweight: only 2.8kg with battery;
ο Takes only 8 seconds for splicing,25 seconds for pyrocondensation;
ο Can set automatic start of splicing or of pyrocondensation upon close of the cover;
ο Simultaneous display of X/Y axis; zoom in up to 304 times original size;
ο Real time discharging for adjustment; no need for further adjustment;
ο Electrode has a long life; discharging times up to 4000;
ο With USB and VGA ports;
ο 5.7 inch digital high resolution LCD;
ο Precise real-time display of remaining battery capacity;
ο Built-in high capacity battery, which enables up to 220 times of splicing and heating;
Specifications:
| Applicable | SM, MM, DS, NZDS |
| Fiber cleaved length | 8-16mm |
| Fiber diameter | Cladding diameter: 80-150um; coating diameter: 100-1000um |
| Oprate mode | Automatic ,semi-automatic ,manual |
| Fiber aligning method | Advanced PAS alignment mode |
| Average Splice Loss | 0.02dB (SM), 0.01dB(MM), 0.04dB(DS), 0.04dB (NZDS) |
| Typical splicing time | 9 second with standard SM fiber |
| Return loss | >60dB |
| Fusion program | 12 (templet), 188 (user) |
| Tube typical heating time | 30 second |
| Protection sleeve length | 60mm, 40mm |
| Storage of splice result | 5000 results, 3 parameter per result |
| Tension test | 2N |
| Fiber magnification | Vertical dual display, 304 times magnification; level of dual display, 152 times magnification |
| Electrode life | 4000 |
| No. of splice/ heating with battery | Typical 130 cycles |
| External interface | provide USB and VGA ports |
| Display screen | 5.7 inch 640*480 color LCD monitor |
| Power Supply | Built-in lithium battery 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
| Heat shrinkable tube | 60mm,40mm and other series of tube |
| Operating condition | 0-5000m above seal level, -10~50ºC, max wind velocity of 15m/s |
| Dimension | 150(D)x150(w)x160(H)mm |
| Weight | 2.8KG including battery |
