| Product Name: | Pen type Visual Fault Locator VFL-250 | Model Number: | VFL-250 |
|---|---|---|---|
| Optional Adapter: | 1.25mm LC adapter for Visual Fault Locator VFL-250 | Application: | FTTH FTTB FTTX Network |
| Power Supply: | 2AAA alkaline batteries | Port: | FC/ST/SC Visual Fault Locator VFL-250 |
| เน้น: | VFL 250 Fiber Optic Tools And Equipment,Pen Type Visual Fault Locator,VFL 250 Visual Fault Locator |
||

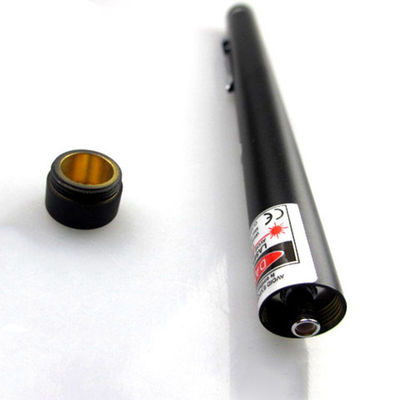

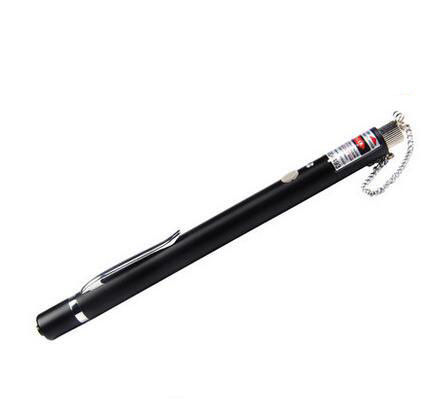

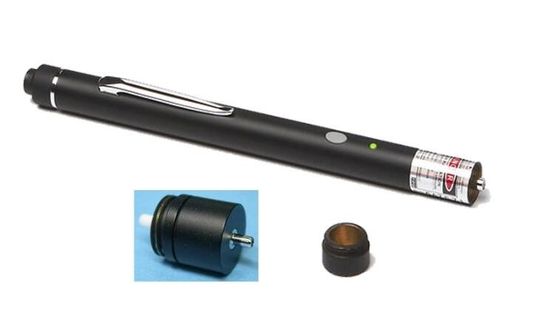

Visual Fault Locator VFL 250 Fiber Optic Tools And Equipment
Pentype Visual Fault Locator VFL-250 ,FIBER CHECKER, Fiber Optic Visual Fault Locator
- Competitively priced, Pocket-size pen design
- Visual Fault Locator is equipped with a 650-nm visible laser diode
- operates in continuous or pulse modes for clear noticeable results
- Push button operate CW / Mod. (2.5 Hz frequency) / pause
- Green LED indicator shows the operating mode
- Power switch on the end for battery on / off
- Protective cap for extra protection
- 2.5mm Universal connector
- 1.25mm adapter available
VFL-250-------------650nm,5mW,detection distance <6 km
VFL-1000A-------- 650 nm,10mW,detection distance <12km
Power supply: 2AAA alkaline batteries
Specifications
| Model | VFL-125 | VFL-250 | VFL-1000 |
| Central Wavelength | 650 +/- 10 nm | ||
| Output Power | 5mW | 10mW | |
| Connector Type | 1.25mm Ferrule | Universal 2.5mm | |
| Transmission | CW or 2.5 Hz pulse | ||
| Batteries | 2 x AAA Alkaline batteries | ||
| Operating Temp. | 0 ~ 50 ℃ | ||
| Detect Distance | Up to 6 Km | Up to 18 Km | |
| Light Source | Class 3A Laser Diode | Class 3B Laser Diode | |
| Dimension/Weight | 13.5 mm X 170 mm / 88 g | ||
Ordering Information:
VFL-250 : 5mW Visual Fault Locator
VFL-1000 :10mW Visual Fault Locator
VFL-125 : 5mW Visual Fault Locator (with 1.25mm Ferrule)
AD-125 : 1.25mm Adaptor for VFL-250 Visual Fault Locator
